All bikes
Orbea
Wild LT
Order through Rad Bikes in Bozeman. Contact us for pricing, order timing, and help with your build.
- Rear travelRear travel
- 170 mm
- Fork travelFork travel
- 170 mm
- Wheels
- 29″
- Frame
- Carbon
A full-power electric mountain bike with race-developed handling and an integrated drive system.

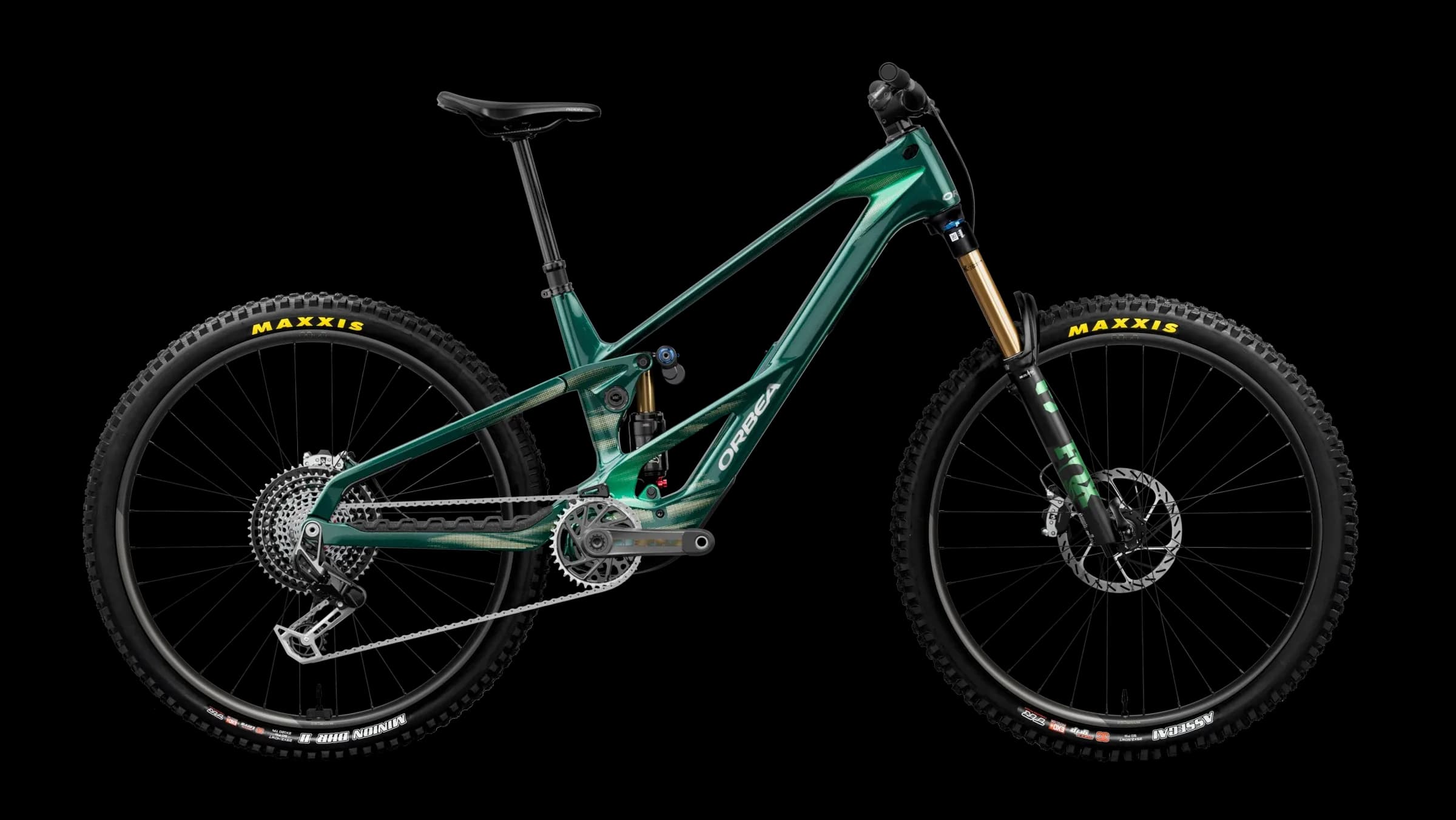

Manufacturer photography. Components shown may vary by build.
Build specs
Wild LT M-LTD RS 20mph · Size LG
Frame & suspension
- Fork
- FOX 38 FACTORY - GRIP X2 170 mm
- Frame
- Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148
- Shock
- FOX FLOAT X2 FACTORY 2-Pos 205x65mm
- Fork travel
- 170 mm
- Rear travel
- 170 mm
Drivetrain
- Chainring
- Sram Steel 34t
- Crank
- e*thirteen Helix Race Carbon e*spec
- Shifters
- Sram AXS Pod Ultimate
- Cassette
- Sram XX-1297 Eagle 10-52t 12-Speed
- Rear derailleur
- Sram XX Eagle AXS
- Chain
- Sram XX Eagle 12-Speed
- Chainguide
- Orbea eBike chainguide
Wheels & brakes
- Brakes
- SRAM Maven Ultimate
- Wheels
- OQUO MC32LTD POWER (29"Front / 29"Rear)
- Tyres
- Maxxis Assegai EXO TR (Front), Maxxis Minion 3C MaxxTerra (Rear)
- Wheel size
- 29″
Cockpit & contact points
- Headset
- Acros ZS56
- Handlebar
- OC Carbon Handlebar MC10 Rise 35
- Stem
- OC Mountain Control 11, 0º
- Seatpost
- OC eDropper Post MC10-RS
- Saddle
- Fizik Terra Aidon X1
Motor & battery
- Motor
- Avinox M2S
- Battery
- Avinox 800 Wh
- Display
- Avinox DP100
- Charger
- Avinox Charger 4A
Other components
- Geometry reference
- wild lt m ltd rs 20mph. Manufacturer reference configuration; other frame, wheel, fork and chainstay options may change measurements.
- Remote
- Orbea System Controller with eDropper Remote
- Computer Mount
- OC Computer Mount CM-05
Geometry
Size LG
Size LG geometry
- Reach
- 486.24 mm
- Stack
- 642.47 mm
- Head angle
- 63.90°
- Wheelbase
- 1287.74 mm
- Seat Tube (C-T)
- 410 mm
- Top Tube (EFF)
- 622.81 mm
- Head Tube
- 130 mm
- Chainstay
- 448 mm
- BB Drop
- 20.01 mm
- BB Height
- 357.49 mm
- Seat Angle
- 78°
- Rake
- 44 mm
- Standover
- 780.7 mm
- Fork Length
- 583.7 mm
Manufacturer information checked 10/19/2026. Specs may vary by build and model year.
Order through Rad Bikes in Bozeman. Contact the shop to confirm pricing and order timing.
