Orbea
Orca Aero
Order through Rad Bikes in Bozeman. Contact us for pricing, order timing, and help with your build.
- Rear travelRear travel
- Rigid
- Fork travelFork travel
- Rigid
- Wheels
- 700c
- Frame
- Carbon
An aerodynamic road bike with integrated cockpit options and several factory component builds.

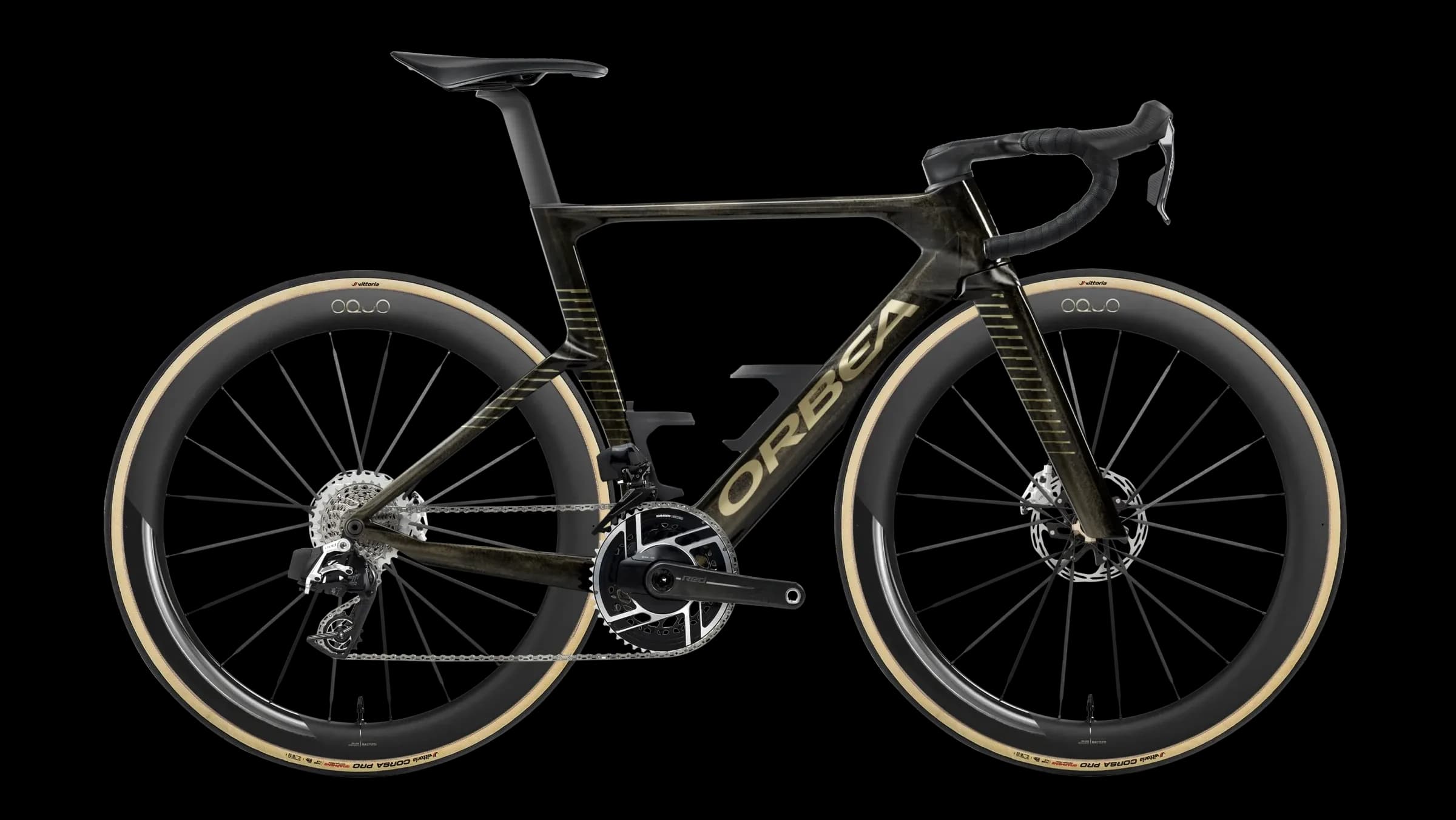

Manufacturer photography. Components shown may vary by build.
Build specs
Orca Aero M11e LTD PWR · Size 47
Frame & suspension
- Fork
- Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
- Frame
- Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.
- Fork travel
- Rigid
- Rear travel
- Rigid
Drivetrain
- Crankset
- SRAM RED AXS DUB 35x48T + Powermeter Quarq DZero
- Shifters
- Sram Red AXS
- Cassette
- SRAM RED XG-1290 10-33T 12S
- Rear derailleur
- Sram Red AXS 12s
- Front derailleur
- Sram Red AXS
- Chain
- Sram Red 12-Speed
Wheels & brakes
- Brakes
- Sram Red AXS
- Rotors
- 160mm Front /140mm Rear
- Wheels
- OQUO Road Aero RA57LTD Carbon Spokes
- Tyres
- Vittoria Corsa Pro Speed G2.0 TLR 700x29c
- Rear Wheel Axle
- Orbea Thru Axle 12x142mm M12x1 Lite
- Wheel size
- 700c
Cockpit & contact points
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
- Handlebar
- OC Carbon Cockpit RA10
- Seatpost
- OC Orca Aero RA11 Carbon, Setback 15-25mm, w/Micro tilt adjustment
- Saddle
- Fizik Vento Antares R1
- Handlebar Tape
- OC Components
Other components
- Geometry reference
- orca aero m11e ltd pwr. Manufacturer reference configuration; other frame, wheel, fork and chainstay options may change measurements.
- Inner Tube
- Schwalbe Aerothan
Geometry
Size 47
Size 47 geometry
- Reach
- 370 mm
- Stack
- 495 mm
- Head angle
- 70.8°
- Wheelbase
- 966 mm
- Seat Tube (C-T)
- 459 mm
- Top Tube (EFF)
- 505 mm
- Head Tube
- 84 mm
- Chainstay
- 408 mm
- BB Drop
- 78 mm
- BB Height
- - mm
- Seat Angle
- 74.5°
- Rake
- 48 mm
- Standover
- 723 mm
- Fork Length
- 368 mm
- Trail Length
- 68.6 mm
Manufacturer information checked 10/19/2026. Specs may vary by build and model year.
